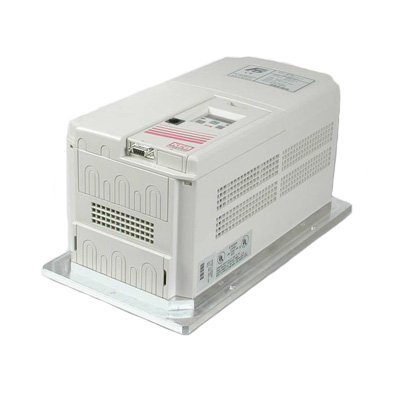

KEB COMBIVERT F5 Inverter, 12.F5.C1D-3A0A

- wide power range for 230 V and 400 V connection
- either AC or DC connection
- optimal characteristics at the motor shaft in different application areas with KEB-SMM (sensorless motor management)
- 29 plug-in control terminals, PNP- / NPN logic switchable
- 2 analog inputs 0 … 10 V, ±10 V, 0 / 4 … 20 mA
- 2 programmable analog outputs 0 … ±10 V
- 8 programmable digital inputs
- programmable outputs: 2 x relay, 2 x transistor
- 4 programmable software inputs/outputs
- 8 free-programmable parameter sets, including S-curves, ramp stop, power-o_ -function, DC-braking, PID controller, electronic motor protection, brake control, internal counter, input, output frequencies up to 1600 Hz, output voltage control, switching frequencies up to 16 kHz, output phase, monitoring, energy saving function
- scan time of the control terminals in 2 ms-time pattern
- ± DC-link connection, motor-PTC evaluation, hardware current limit
- internal brake chopper, (series up to housing size G, option from housing size H)
- controlled positioning to end position/counter pulse

KEB Combivert F5 Compact Frequency Inverter
