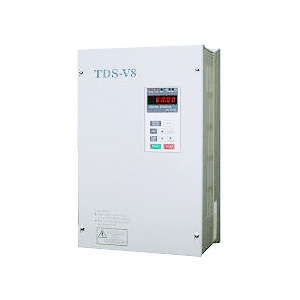

Shako Inverter, TDS-V8-H2P2F, 3-Phase, Sine PWM

Short Description

Model No.: TDS-V8-H2P2F
Brand.: Shako
Clicks: 1663

China Inverter supplier Honest offers Inverter made by Shako, TDS-V8-H2P2F, 440V, 3-Phase, Sine PWM, 400Hz, Auto Torque Boost, Slip Compensation.

Request a quote Share

Keywords: Inverter,

Next: Mitsubishi Inverter, FR-F740-S75K-CHT

Shako Inverter, TDS-V8-H2P2F, 3-Phase, Sine PWM Key Specifications / Features

Input Voltage Class			440V class 3Phase
Model			TDS-V8-H
Model			0P7	1P5	2P2	3P7	5P5	7P5	011	015	018	022	030	037	045	055	075
Max. Applicable Motor		HP	1	2	3	5	7.5	10	15	20	25	30	40	50	60	75	100
Motor Output(CT)*		kW	1	2	3	5	7.5	10	15	20	25	30	40	50	60	75	100
Motor Output(CT)*		kW	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Weight (kg)			2	2	2.4	2.4	5.5	5.5	13.1	13.1	24.5	24.5	24.5	24.5	24.5	46	46
Power Output	Rated Output Capacity(kVA)		2.1	2.7	4	7.5	10.1	13.7	20.6	27.4	34	41	54	68	82	110	138
	Rated Output Current(A)		2.6	4.0	4.8	8	12	16	24	32	40	48	64	80	96	128	165
	Max. Output Voltage		3Phase 380V~460V
	Max. Output Frequency(Hz)		Through parameter setting ( 0 Hz to 400Hz)
Power Source	Rated Voltage, Frequency		3Phase 380V~460V，50/60Hz
	Allowable Voltage Fluctuation		-15％～ +10％
	Allowable Frequency Fluctuation		±5％

Control Characteristics	Operation Mode	LED Operator or LCD Operator
	Control Mode	Sine PMW
	Frequency Control Range	0.1Hz～400Hz
	Frequency Accuracy(varied with temperature)	Digital Command:±0.01％(-10 ～ +40℃), Analog Command:±0.1％ (25℃ ±10℃)
	Frequency Command Resolution	Digital Command:0.01Hz, Analog Command:0.06Hz/60Hz
	Frequency Output Resolution	0.01Hz
	Overload Resistibility	150% Rated Current for 1 Minute(CT) ； 120%Rated Current for 1Minute(VT)
	Frequency Setting Signal	DC 0 ～ +10V / 4 ～ 20mA
	Acc./Dec. Time	0.0～6000.0 sec (Accel/Decel Time Can be Set Independent)
	Voltage-Frequency Characteristics	V/F Curve Can be Set Through Parameter Setting(16Types)
	Regeneration Torque	100%，2％ED，5 sec
	Main Control Function	Auto Torque Boost，Slip Compensation, Restart After Momentary Power Loss, Energy-Saving, PID Control, RS-485 Communication, Simple PLC Function, Sensorless Vector Control
	Extra Function	Up/Down Operation, 4 Different Sets of Fault Status Record (Including Latest One), Cumulative Power On & Operation Hour Memory, Energy Savings Function, MODBUS Communication, Multiple-Pulse Output Ports, etc.
Protection Function	Stall Prevention	During Acceleration/Deceleration and Constant Speed Operation (Current Level can be Selected During Acceleration and Constant Speed Operation. During Deceleration, Stall Prevention can be Enabled or Disabled)
	Instantaneous Overcurrent (OC)	Stopped if above 200% Rated Current
	Inverter overloads Protection(OL2)	Stopped if above 150% Rated Current for 1 Minute
	Motor Overload (OL1)	Electronic Overload Curve Protection
	Over voltage(OV)	Motor Coasts to Stop if VDC > 410V (230V) or VDC > 820V (460V)
	Low voltage(UV)	Motor Coasts to Stop if VDC < 200V (230V) or VDC < 400V (460V)
	Momentary Power Loss Ride-Through time	Motor Coasts to Stop after Momentary Power Loss Lasting > 15ms
	Overheat (OH)	Protection by Thermistor
	Grounding Protection (GF)	Protection by the DC Current Sensor
	Charge Indication	Light when the DC Bus Voltage ≧50V
Mechanical Construction		Enclosed, Wall-Mounted Type (NEMA-1)
Cooling		Forced
Weight(Kg)
Environmental Conditions	Location	Indoor (No Corrosive Gas and Dust Present)
	Ambient Temperature	+14 to 104℉, -10 to +40℃ (Not Frozen)
	Storage Temperature	-4 to 140℉, -20 to +60℃
	Humidity	Below 90%RH (Non-Condensing)
	Altitude, Vibration	Below 3300ft (1000m), 5.9m/S两 (0.6G), (JISC0911 Standard)
Communication Function		RS-485 Built-in (MODBUS )
EMI		Meet EN50081-2 (1994) With Specified EMI Filter
EMC Compatibility		Meet Pr EN50082-2
