Short Description
China SMC Filters Supplier Honest provides AR20-02-A Filter, offering various pressure range settings to accommodate most applications.
Keywords: Filter,
 |
SMC Filters, AR20-02-A Key Specifications / Features
Cost effective and clean looking, series AR regulators offer various pressure range settings to accommodate most applications. The locking adjustment knob prevents accidental setting changes. Options include a mounting bracket and set nuts for panel mounting, and a pressure gauge. The modular design of the AR series connects with other SMC air preparation equipment.

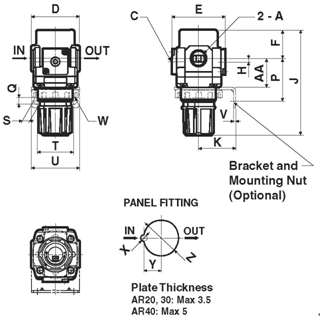

| Model | Port Size | Gauge Port | Dimensions | ||||||||||||||||||
| A | C | D | E | F | H | J | K | L | M | P | Q | S | T | U | V | W | X | Y | Z | AA | |
| AR20 | NPT 1/4 | NPT 1/8 | 40 | 57 | 26.5 | -2 | 91(max.94) | 30 | 65 | 37.5 | 44 | 5.4 | 15.4 | 34 | 55 | 2.3 | M28 X 1 | 6 | 1/4 | 28.5 | 25 |
